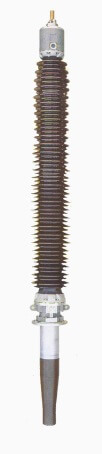

Oil Impregnated Paper Bushings 245 kV, 420 kV (OTF)

Oil impregnated bushings(OTF) Niroutrans

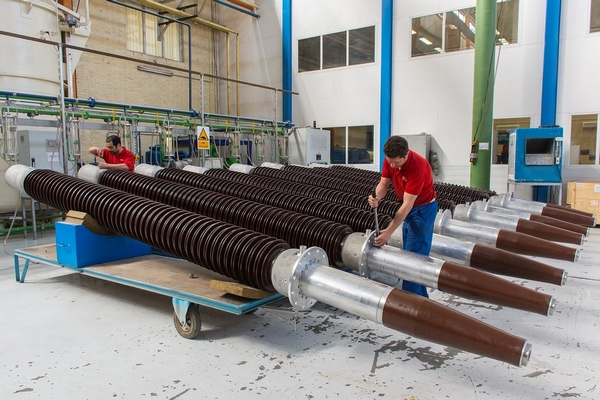

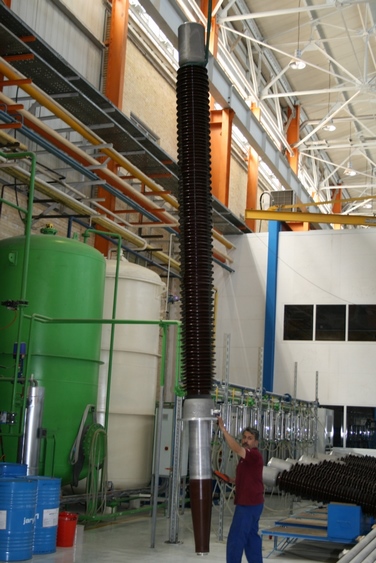

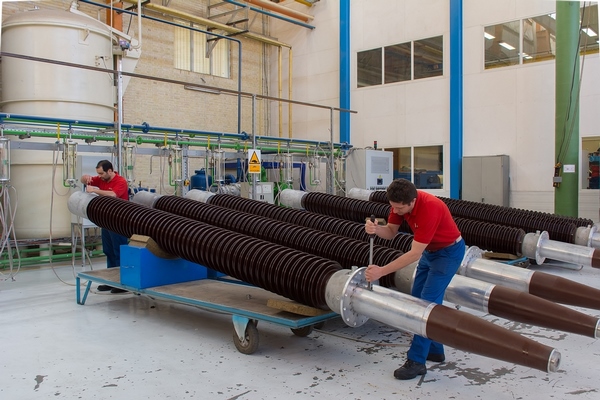

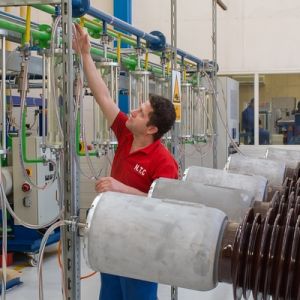

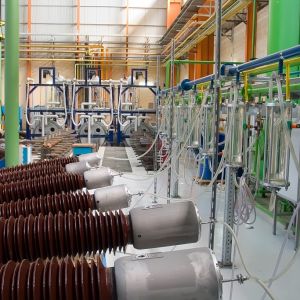

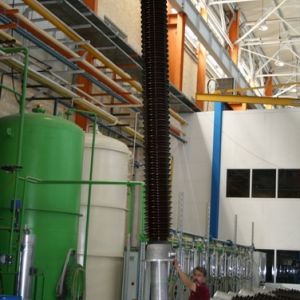

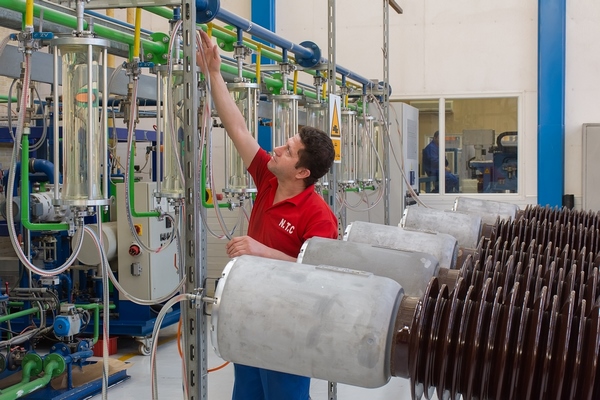

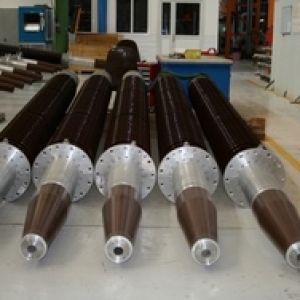

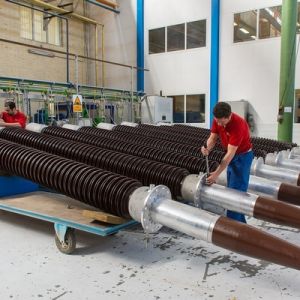

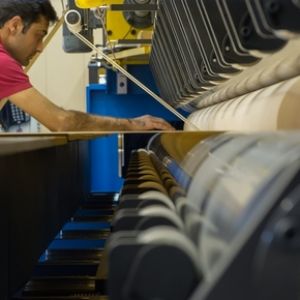

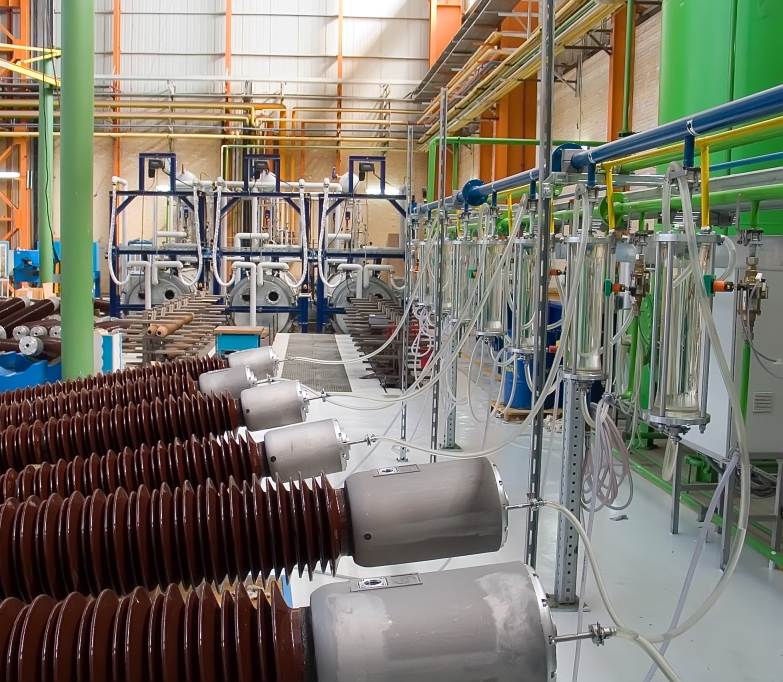

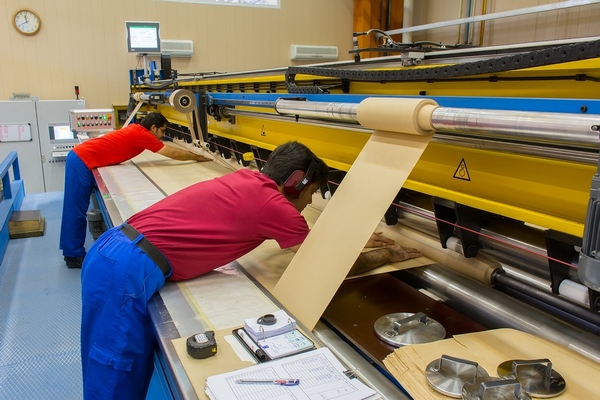

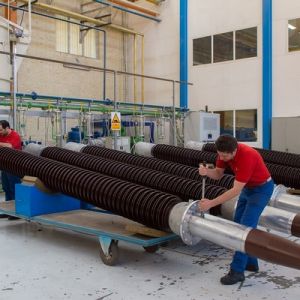

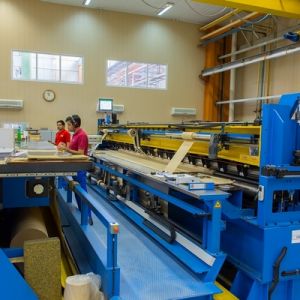

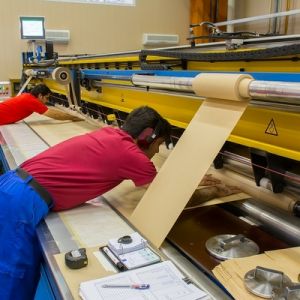

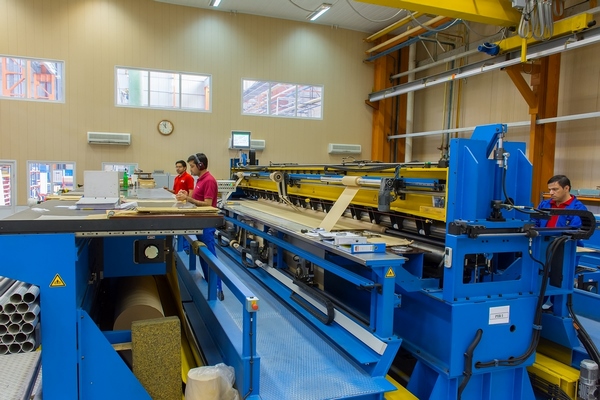

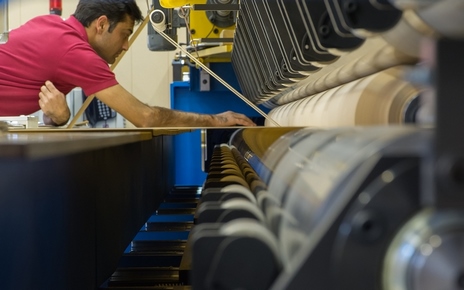

High voltage bushings are the necessary parts of power transformers. Depending on the configuration, some bushings are used in each power transformer. Oil impregnated bushings 245 and 420kV (OTF) are produced in Nirou Trans Company under license of HSP-Siemens. They are constructed in a modular system which make it possible to configure as request.The insulating body of this technology is made of Oil-impregnated insulating paper which is wound on the center tube in wide tapes. During the winding process grading layers of aluminum foil are integrated to permit uniform voltage distribution. The grading layers guarantee optimum distribution due to their excellent conductivity,despite sudden voltage fluctuations.

Some Features of OTF Bushings of 245 & 420 kV made by NirouTrans:

1- Know-How and Technology from HSP-Siemens of Germany
2- Excellent Electrical withstand Capability
3- Sufficient Mechanical Strength
4- Low Thermal Stress
5- Magnetic Oil level indicator or Sight Glass (on Request)
6- Large Creepage distance
7- Sufficient Flashover distance
8- High Technology Machinery
9- Meet the requirements of customers according to the world’s most well-known standards.
8- Economical price

Downloads

Basics

Bushing Dimentions (Details)

Bushing Dimentions

OTF Models

Instruction Manual

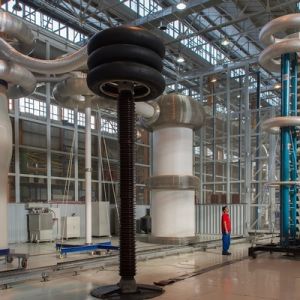

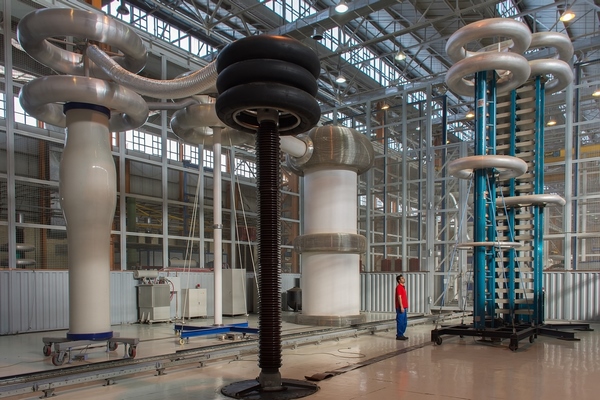

Type Tests

BUSHING 245 KV

BUSHING 420 KV

Model Details:

: click to switch tables.

Model	Oil Level Indicator	CTE (mm)	Ir (A)	Um (kV)
OTF-1050-245 AE4 B SPECIAL	Sight Glass	400	1600	245
OTF-1050-245 AE4 B SPECIAL	Magnetic	400	1600	245
OTF-1550-420 AE6 SPECIAL	Sight Glass	600	1600	420
OTF-1550-420 AE6 SPECIAL	Magnetic	600	1600	420

Model	Code	Um (kV)	Ir (A)	L (mm)	L1 (mm)	L2 (mm)	L3 (mm)	L4 (mm)	L5 (mm)	PCD* (mm)	Dmax** (mm)	Dmin** (mm)	d1 (mm)	d2 (mm)	d3 (mm)	t1 (mm)	D1 (mm)	D2 (mm)	n x d4 (mm)	Detail F	Conductor Diameter*** (mm)	d5 (mm)	d6 (mm)	d7 (mm)	t2 (mm)	R (mm)	Mass (Kg)
OTF-1050-245 A	B2E401	245	1600	4245	135	2475	205	400	1020	208	370	235	42	330	185	20	450	400	12 x 20	F4	45	50	130	N/A	80	330	410
OTF 1550-420 A	B4E601	420	1600	6185	135	3850	225	600	1390	268	370	300	42	390	245	20	450	400	12 x 20	F5	45	50	150	N/A	100	450	750

* The PCD of Air outlet.
** The O-Ring of Transformer shall be placed against the sealing surface limited to Dmin, Dmax for secure sealing.
*** Diameter of Copper Conductor.
